Digital Vacuum Tester Pressure Gauge Manifold

Digital Vacuum Tester Pressure Gauge Manifold

Pressure Gauge Refrigeration Digital Vacuum Pressure Manifold Tester Meter HVAC Temperature Tester Air conditioning repair tool Air Conditioner Refrigeration Single Manifold Vacuum Gauge Pressure Gauge
Intelligent Electronic Refrigerant Group Meters are auxiliary instruments for installation, testing and maintenance of refrigeration equipment such as air conditioning and cold storage. Digital reading, multi-unit switching, the instrument uses high-strength engineering plastics and flexible non-slip silicone design, the machine is sturdy and durable. The large-size LCD monitor supports LCD backlight, the data display is clear and easy to read, and the light operation is convenient. Long life valve switch, 1/4 inch standard interface design ensures the durability and versatility of the instrument.

FAQ

Product introduction：

1.Digital refrigerant pressure gauges are made of the latest microcomputer controllers, 24-bit AD converters and high- precision pressure sensors. It not only can accurately measure the pressure of gas and liquid, but also can measure the vacuum pressure.

2.The pressure gauge has no movable parts, so it has long service life, high measuring accuracy and good long-termstability.

3 It contains the pressure and temperature parameters of common refrigerant, and the measured parameters of refrigeration system such as pressure, condensation temperature, evaporation temperature and so on are clear at a glance.

4.Widely used in refrigeration equipment, air conditioning refrigerant tools, snow seed pressure measurement, vacuum equipment, pneumatic equipment and other hydraulic, pneumatic measurement occasions.

Pressure Gauge Refrigeration Digital Vacuum Pressure Manifold Tester
Meter HVAC Temperature Tester air conditioning refrigerant tools
pressure measurement vacuum equipment
Intelligent Electronic Refrigerant Group Meters are auxiliary instruments for installation,
testing and maintenance of refrigeration equipment such as air conditioning and cold storage. Digital reading, multi-unit switching, the instrument uses high-strength engineering plastics and flexible non-slip silicone design, the machine is sturdy and durable. The large-size LCD monitor supports LCD backlight, the data display is clear and easy to read, and the light operation is convenient. Long life valve switch, 1/4 inch standard interface design ensures the durability and versatility of the instrument.

Functional characteristics：

1.Can measure commonly used gas, liquid.

2.The vacuum can be measured.

3.Contains pressure and temperature gauges for common refrigerants.

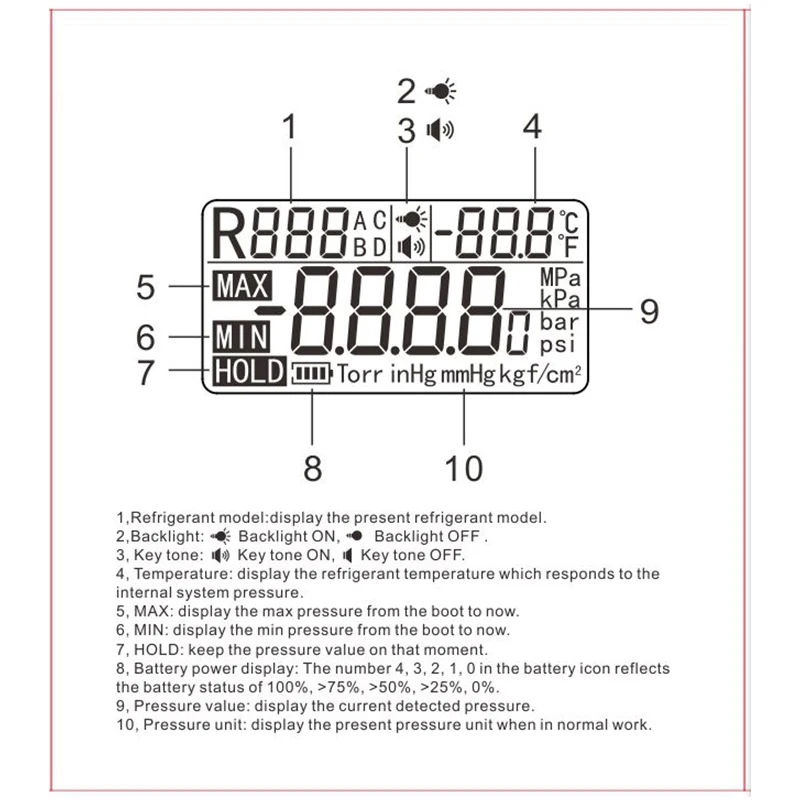

4.LCD with backlight.

5.Long battery life, no power consumption after shutdown.

6.Can be measured are: R12, R22, R32, R123, R134A, R290, R404A, R407C, R410A, R502, R507, R600A .

7.Pressure units can be selected from Mpa, kPa, bar, psi, kgf/cm2, mmHg, inHg, Torr

8.The outer casing is covered with rubber and is more durable.

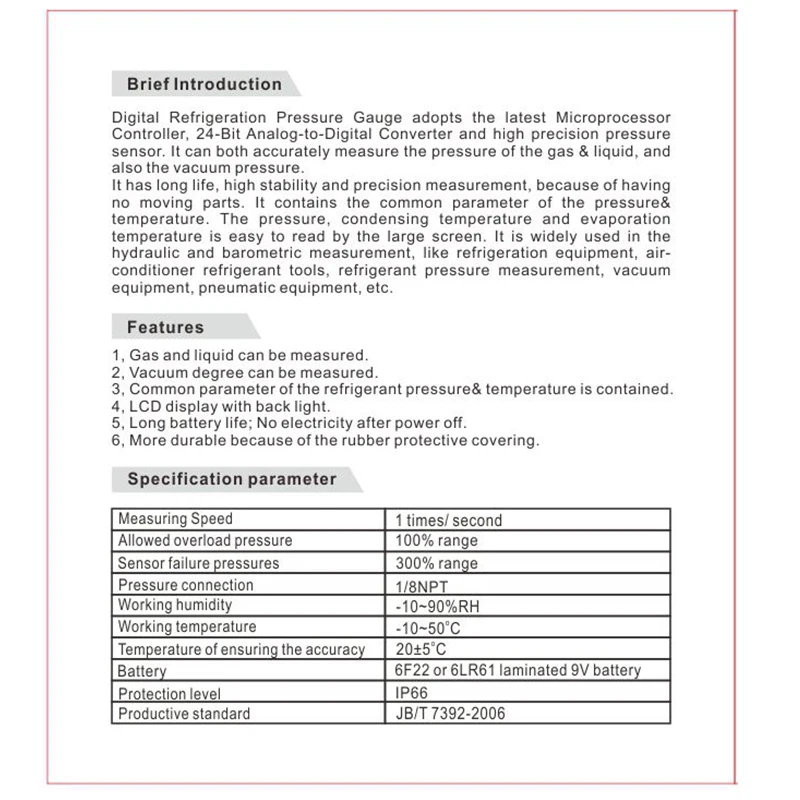

Technical parameters：

1.Permissible overload pressure：Range 110%

2.Breaking pressure of sensor： Range 300%.

3.Measuring velocity：1 time / sec

4.Pressure interface：NPT1/8

5.Working humidity：10~900%RH

6.Working temperature：-10~50℃

7.Temperature to ensure accuracy：20 ±5 ℃

8.Battery：6F22 9V Battery (Not included)

9.Protection grade：IP66

10.Measure speed: 1 time / second

11.Range： -0.1 ~ 5.0MPA

Package Includes:

1 x Digital pressure gauge (The shipping model is the same as your order selection model)

1 x User Manual

1 x Giftbox
